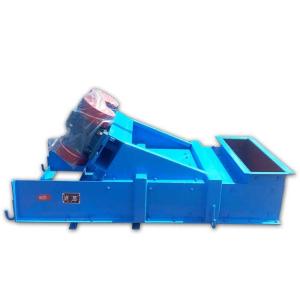

Custom Vibration Feeder Low Running Noise Easy Maintenance Long Service Life

Product Categories

Xinxiang jinrui machinery factory

Contact Now

Custom Vibration Feeder Low Running Noise Easy Maintenance Long Service Life

Ask Lasest Price
Brand Name :	JINRUI
Model Number :	ZG
Certification :	ISO/CE
Payment Terms :	L/C, T/T
Supply Ability :	10 SETS PER WEEK
Delivery Time :	5-7 WORK DAYS

Add to Cart

Product Details
Company Profile

Custom Vibration Feeder Low Running Noise Easy Maintenance Long Service Life

Smoothly Vibrating Vibratory Feeder With Hanging And Double Motor

1. General Description

benefit the system with high and stable yields and safe operation. The vibratory feeder facilitates materials classification, improves the system efficiency, and saves land space and power energy, which is widely used in artificial sand making system, mining, building, material making, chemical industry, metallurgy, water conservancy and other industries.

1. Features
1. Smoothly vibrating and long service life
2. Vibrating force adjustable, easy to operation.
3. Low noise and power consumption
4. Simple structure, easy to maintenance.
6. Simple structure

3. Working Principle and Application

The feed process of the vibrating feeder is achieved by the feed spout do line reciprocating vibration periodically which is forced by the special vibrating motor. When the vertical component of the feed spout vibrates, the accelerated speed is bigger than the gravitational acceleration, the material will be upthrow and jumping forward along a parabolic path. Due to the continuous exciting of the vibrating motor, the feed spout will vibrate continuously and the material in the feed spout will jumping forward continuously, so that the purpose of feeding material is achieved.
Vibrating Feeder is widely used in pharmaceutical, automotive, electronic, food processing, packaging, glass, steel, construction, recycling, plastic industry etc.

Model				Vibrating Motor
	Productivity	Feeding Tough Size	Granularity

	≤ T/h	B Χ L Χ H (mm)	≤ mm	Model	Power (kw)
ZG60-4	85	600Χ 1200Χ 250	50	16-4	0.75Χ 2
ZG70-4	100	700Χ 1300Χ 280	50	16-4	0.75Χ 2
ZG80-4	200	800Χ 1600Χ 300	50	16-4	0.75Χ 2
ZG90-4	220	900Χ 1600Χ 350	50	20-4	1.1Χ 2
ZG100-4	240	1000Χ 1600Χ 350	50	32-4	1.5Χ 2
ZG110-4	400	1100Χ 1800Χ 400	50	32-4	1.5Χ 2
ZG120-4	440	1200Χ 2000Χ 400	50	32-4	1.5Χ 2
ZG80-6	160	800Χ 1600Χ 350	50	30-6	2.2Χ 2
ZG110-6	320	1000Χ 1600Χ 350	50	50-6	3.7Χ 2
ZG150-4	500	1500Χ 2200Χ 400	50	50-6	3.7Χ 2

Applications:
1. ZGseries vibrating feeders can be used in many industries, including metallurgy, coal, chemicals, building materials, ceramics, abrasives, food and so on.
2. The vibrating feeder can feed materials of block, powder and compound shapes from stock bin to the processing equipment uniformly, quantificationally and continuously, quite suitable for automatic proportioning, quantitative packaging and automatic control

Packing Details:

1, Outer packing is plywood case, which is up to the international standards.

2, Inner packing is Moisture-proof and water-proof membrane.

3, All of package are wrapped by 0.5mm steel belt to further strengthen.

DeliveryDetail:

3-5 working days after receiving deposits.
